SOLAR WATER PUMPS

All prices are subject to change without prior notice

AquaTec Diaphragm Pumps

Self priming up to 8 ft can run dry without damage, optional motor cooling fins, one way check valve prevents reverse flow and automatic operation with pressure demand switch. Delivers reliable performance in high flow, moderate pressure applications. There are used in a variety of transfer and dispense on demand applications where flow to 5.0 gpm is required. For added reliability the Twist-on Strainer can be used on the 550 inlet port.

For more information go to: www.aquatec.com

VOLTS
12 VDC
12 VDC
24 VDC
115 AC
GPM
1.8 GPM
5.0 GPM
5.0 GPM
5.0 GPM
PSI
100
60
60
60
PRICE
$70.00
$80.00
$85.00
$100.00

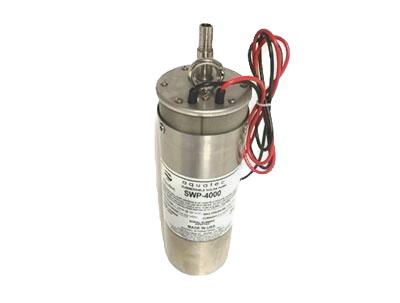

AquaTec Submersible Pumps

Three piston, 12/24vdc (can run at 12vdc @ 1/2 the 24 volt gpm) 230 head max.

MODEL SWP-4000

Fits well casings 4" or larger

$620.00

MODEL SWP-6000

Fits well casings 6" or larger

$750.00
Manual
Brochure
SPECS:

AquaTec Pump Controllers

APC-30-250 controller it has added features including wireless dry-run protection (Aquatech measures amp draw), trim-pot to manually control the voltage output to the pump and thus control flow (especially in low yielding water wells), over current and over voltage protection and of course a really good Linear Current Boosting/MPPT.

For more information go to: www.aquatec.com

SWP Linear current booster, on/off switch, 12 or 24 vdc

$290.00
Manual

Shurflo 2088 Series Diaphragm Pumps

Self priming up to 12 ft, can run dry without damage, optional motor cooling fins, one way check valve prevents reverse flow and automatic operation with pressure demand switch. Delivers reliable performance in high flow, moderate pressure applications. There are used in a variety of transfer and dispense on demand applications where flow to 3.8 gpm is required. For added reliability the Twist-on Strainer can be used on the 2088 inlet port. Install optional heatsink 34-006 or 5″ heatsink 34-007 for heavy duty applications where extra cooling is required.

VOLTS
12 VDC
24 VDC
24 VDC
24 VDC*
115 AC
115 AC
GPM
4.0 GPM
1.6 GPM
3.0 GPM
3.6 GPM
1.6 GPM
3.2 GPM
PSI
45
100
45
45
100
45
PRICE
$164.00
$130.00
$105.00
$182.00
$135.00
$133.00

Shurflo 9300 Submersible Pumps

Three piston, 12/24vdc (can run at 12vdc @ 1/2 the 24 volt gpm) 250 head max.

$740.00
SPECS:
Brochure

Shurflo Pump Controllers

902-200 Linear current booster, on/off switch, water level sensor 12 or 24 vdc

$290.00
SPECS:
Manual

Grundfos CRFlex

Self priming up to 12 ft, can run dry without damage, optional motor cooling fins, one way check valve prevents reverse flow and automatic operation with pressure demand switch. Delivers reliable performance in high flow, moderate pressure applications. There are used in a variety of transfer and dispense on demand applications where flow to 3.8 gpm is required. For added reliability the Twist-on Strainer can be used on the 2088 inlet port. Install optional heatsink 34-006 or 5″ heatsink 34-007 for heavy duty applications where extra cooling is required.

CRFlex Pump Features:

  • Maximum Power Point Tracking (MMPT) – Motor continuously optimizes the speed according to the input power available when connected to DC supply.

  • Wide voltage range – Operates at any voltage from 110 to 415 vdc or 220 to 240 VAC

  • Overvoltage and undervoltage protection

  • Overload protection

For more information go to: www.grundfos.com

Model
3-9
5-5
10-2
Price
$3,700.00
$3,700.00
$3,700.00

Grundfos SQFlex

Designed for continuous or intermittent operation the SQFlex is especially suitable for water supply applications in remote locations. The SQF Pump uses helical rotor technology for high heads and small flows.

SQFlex Pump Features:

  • Maximum Power Point Tracking results in high efficiency

  • Dry Running Protection w. Automatic Restart

  • Max Power Input 900 Watts

  • Overload Protection w. Automatic Restart

  • Max Speed 3000 Rpm

  • Max Current 8.4 Amp

  • Flexible power supply 30-300vdc, 90-240vac

  • Overvoltage and Undervoltage Protection

  • Overtemperature Protection w. Automatic Restart

  • Adaptable to Solar, Wind, Battery or Generator Power

For more information go to: www.grundfos.com

Model
3 SQF-2
3 SQF-3
6 SQF-2
11 SQF-2
Capacity
300′ head, 2 gpm
640′ head, 2 gpm
300′ head, 6 gpm
300′ head, 11 gpm
Price
$2,700.00
$2,700.00
$2,700.00
$2,700.00

Grundfos Control Boxes

The SQFlex system is available with a user-friendly CU200 control unit that maintains two-way communication with the pump and monitors the operating conditions. Built-in diagnostics indicate faults and dry-running, display operating status power consumption and level switch input. Other alternatives are IO100 switch box and IO101 generator box for SQFlex Solar, and IO102 breaker box for SQFlex Wind, which are controlled by a manual on/off switch.

CU 200

$450.00

IO101

$525.00

115 VAC
