Solar and Electrical Contractor CA Lic #620243 Energy Auditor #840325 IAEI Member Veteran Owned Business
Authorized Sol-Ark Stocking Distributor
Inverters
All prices are subject to change without prior notice
Family Energy Storage Systems
API 48-5000 Hybrid Inverter
5kW, 120vac, 60Hz, includes 5kW, 500vdc solar MPPT input, 5kW AC input/charger and flow through circuit.
API LiFePO4 Stackable Power System
100AH high quality cells, 51.2kWh (stackable to 30.72kWh). BMS; active cell balancing CAN & RS 485 com ports, on/reset button, main circuit breaker, touch safe cable connections, state of charge, fault and function LED bar graph.

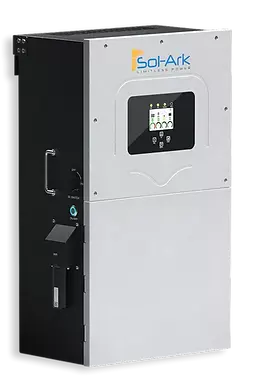

Sol-Ark Inverters
12,15,30, and 60kW
Authorized Sol-Ark stocking distributor
Special contractor pricing
Description
We have been a distributor and installer for Sol-Ark inverters for many years. These inverters are an “all in one” solution to most installation problems. All necessary and required circuit breakers, multiple 500 vdc solar MPPT inputs, Solar disconnect switch, plus AC charging via grid and/or generator are included. These inverters are basically computers not inverters. They can be programmed multiple ways. Plus, they are very compatible with 16 cell LiFePO4 systems. We no longer need to use our API Li system's BMS to control charge, discharge, etc. We can program the Sol-Ark inverters to our system needs. One of the many benefits of these inverters is that they have two separate outputs. One output is grid tied export or non- export by simply installing CT’s at the point of common coupling. This circuit is a grid tied circuit and shuts down during a power outage. The other is the inverter output and is “hot/live” as long as you have solar or battery power. The inverter can be programmed to supply all the power to the inverter output circuit and send “excess” power to the grid tied circuit for export or non-export. These inverters can function with or without batteries. One of the many benefits of using our API LiFePO4 systems is when the batteries are fully charged there is very little resistance and minimal to no charge current goes to the battery. At that point all loads are powered solar direct while the Li system stays in standby mode until the loads accumulate and more power is needed. Most systems fully charge their Li system by mid-day and then run solar direct the rest of the day, utilizing the battery stored power only at night and early morning.
For more information go to www.Sol-Ark.com
Exeltech Inverters
Made in USA, Texas, since 1991. Truly the most reliable inverter on the market. Also the cleanest wave form. Typically less than 1% total distortion. We have used these inverters for many, many years. In fact Advance Power has been powered by a 20 MX system for close to 20 years. Two major styles, XP version is up to 2 kW and the MX systems are up to 20 kW @ 120 vac, up to 40 kW @ 240 vac and up to 60 kW @ 208, 3 phase. We have installed these systems in numerous applications including business, homes, ranches, recording studios and radio stations. Exeltech's reliability and clean wave form make them the inverter of choice for recording studios and radio stations. Just about all the major telecommunications system use these inverters as ALL the US embassies utilize them for backup power systems.
For more information go to: Exeltech.com
Exeltech XP Systems
Description
XP systems are smaller, complete inverter systems, up to 2 kW. Fully contained as an independent power supply. With dual output receptacles for ease of use. Excellent for smaller power requirements, where reliability and clean power are required. Uses are small cabins, UPS systems, RV, Boat and any remote power requirement.
For more information go to: Exeltech.com
Exeltech MX Systems
Description
MX systems: Modular, redundant, virtually impossible for a system failure. Individual 1000w power modules installed into a “cage”. Each power module is controlled by a “control card”. Control cards are redundant; if one fails the system automatically switches to the second control card and sends a signal via the alarm card. “Alarm Cards” are system status indicators and have system on/off switches. Cages can be set up as 120, 120/240 and 208 3 phase. Cages can be initially sized with minimal power modules and more can be added, over time as system power requirements grow. If a power module fails, the rest of the system still functions. Power modules can be swapped out “hot”. Meaning you can replace/remove power modules while the system is on and producing power. No other inverter system on the market can do this.
For more information go to: Exeltech.com
Magnum Inverters
Description
Pure Sine Wave. Testing by Advance showed a very high quality waveform running every load without any problems. Comes with a 3 year warranty, the best in the industry. Easy to program. Includes a remote digital display and a Power Factor Corrected (PFC) Battery Charger that is 25-30% more efficient than conventional chargers. Five stage charging includes a unique Battery Saver Mode which is especially useful for Backup, Off-grid, RV and Marine applications.
The MS-PAE Series Inverter/Charger from Magnum Energy is a pure sinewave inverter designed specifically for the most demanding renewable energy applications. The unique design of the MS-PAE Series provides two 120VAC output lines that are 180º out-of-phase with each other, so that the combination of the L1 and L2 lines total 240VAC and the voltage between either L1 or L2 and neutral is 120VAC, eliminating the need to purchase two units and stack them together to get 240 volts. When the power requirements of the system are beyond the capacity of a single MS-PAE Series inverter or the system is expanded as more loads are added, up to four MS-PAE Series inverters can be connected together in a parallel configuration. When connecting inverters in parallel, the overall inverter power and surge capacity is increased to power a large single load or more smaller loads. Available in 4000 (24 volts) and 4400 (48 volts) watt models, the MS-PAE Series inverters are powerful, easy-to-use and ETL listed to the stringent requirements of UL 1741 and CSA C22.2 No. 107.1-01 for Renewable Energy installations.
For more information go to: www.magnumenergy.com
Magnum Panel Enclosures
Description
The MP (Magnum Panel) enclosures have been specifically designed to combine all of the major components required for a high power renewable energy system – inverter/battery disconnect, AC overcurrent protection, grounding connections, and a full system inverter bypass switch as a convenient way to isolate the inverters for battery maintenance – into easy to install pre-wired enclosures. Designed for multiple inverter applications, the MP Series enclosures feature convenient front panel operation, and with the optional Router (ME-RTR), will allow you to easily set up, monitor, and operate up to four MS-PAE inverter/chargers together (must be identical models to parallel stack). In addition to saving time and money by providing a simple and convenient inverter installation, the MP enclosures ensure safety and reliability by providing a UL and CSA certified and code compliant System.
For more information go to: www.magnumenergy.com
Samlex Pure Sine Wave Inverters
Description
Pure Sine Wave: True sine wave voltage inverters provide clean, stable power for computers, radio equipment, and other applications that are sensitive to AC voltage irregularity.
For more information go to: www.samlexamerica.com
Samlex Modified Sine Wave Inverters
Description
Modified sine wave AC/DC power inverters are ideal for powering office equipment, television, power tools and lighting systems.
Schneider Xw Hybrid Inverters
Description
True Sine Wave. Unprecedented surge capacity. Ideal for either Off-Grid or Grid Tie Interface. The XW Series will charge a battery bank from solar, wind or the grid for backup power. Certified to UL1741 and CSA for Utility Interface Systems.
For more information go to: www.se.com
